Chaff Cutting Machine ( SP 30 )
Power operated, Covered M. S. Plate Wheel fitted with 3 Steel blades, Large feeding tray, Pressing drum, Complete ball bearings, Slide rail for Motor & Grinder. Machine Pulley, Grinder & Regrinding attachment. Having Downward & High level blower.
R.P.M. MAX : 600
H. P. Required : Minimum 7.5 H. P. & Maximum 10 H. P.
Minimum Capacity : 1500 KG per Hour
Changes given below can be made on customer’s request.
1) 4 Bladed machine
2) Only downward blower arrangement
3) For Rice Straw Cutting
4) Designed especially for Gaushalas and cows
5) Superb quality
6) Excellent performance

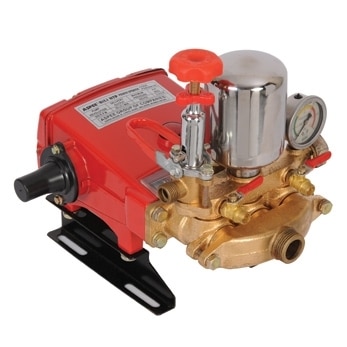

ASPEE-BILI HTP horizontal triplex power sprayer unit, developing up to 500 psi (35 bar) pressure and giving free discharge of 30 lit/min at 900 rpm. Sprayer Supplied with pulley, pressure vessel, pressure indicator, by pass cum pressure regulator valve, 3 meter long by-pass & suction hose with strainer, couplings for delivery hose
Heavy duty & efficient sprayer
Heavy duty industrial quality brass stamping material
Stainless steel piston
All working parts are lubricated by oil bath
Aluminum pressure die casting connecting Rod
Control valve assly. With pressure regulator, by-pass
Pulsation free spray
Develop pressure up to 500 psi max.
Sturdy/rugged construction
Model: PSB30A1NB
Material of Construction: BRASS
Suction capacity (lpm): 30
Normal working pressure: 100 - 200 PSI
Max. Pressure: 500 PSI
Pump revolution: 950
Power (hp): 3 ~ 4 HP
L X W X H (in mm): 337 X 305 X 295
Weight (without oil): 7.7 kg (approx)

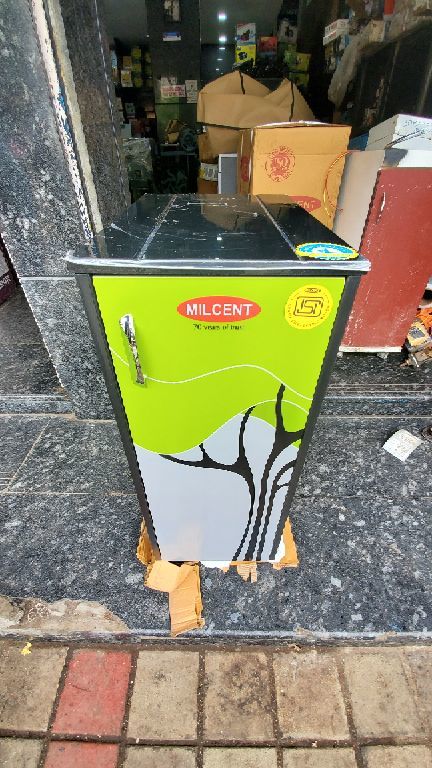

Description
Features:
Single solution to Grind all Grain & Spices
Auto Start
Grinding starts automatically by sensing the presence of grain
Auto Child safety stop
Machine stops grinding on opening the front door during grinding & till door is not closed grinding doesn’t start
Auto Glow
Glowing LED lighting for your convenience when you open the door
Auto overload cut off
Grinding stops automatically if the machine gets overloaded (for protection of electric motor)
Auto Clean
Auto clean system makes grinding chamber clean at the end of grinding process. Buzzer system will make indication of Auto Cleaning process
Auto Stop
At the end of grinding process after Auto cleaning, the flourmill stops automatically
Advanced Auto Feed System
Advanced motor controls grain feeding automatically, without any noise or any manual setting for your ease
Specially designed power saver motor
Best quality electric motor with copper winding, silicon stamping, SKF bearings etc.. Saves almost up to 30% electricity
Power full & Advanced micro controller
Advanced reliable micro controller for precise functions of auto features
Single Piece SS Grinding Rotor without any joint
Single piece rustproof SS grinding rotor to avoid any accident at high RPM
Long life SS Grinding Sieves
Seven different type of strong rustproof SS sieves for different types of flour
Aesthetically well designed
Well designed aesthetically give an attractive look to the product
Advanced Vaccu Cleaning Technology
With Advanced Vaccu cleaning system enjoy hassle free cleaning of Flourmill, which don’t leave any flour particles in the product. So now with Milcent Vaccu Clean technology cleaning process is fast, easy & efficient
Also Available in 110 volt , 50Hz/60Hz Variant
Specifications
Technical:
Weight: 45 Kg
Power Supply: 230v, 50Hz, Single Phase
Electric Motor: 1 hp, 2880 RPM
Hopper Capacity: 4 Kg
Container Capacity: 4 Kg
Length*Width*Height: 525mm*345mm*770mm
Full load current: 4.5 Amp
Griding Capacity [ kg / hr ]:
Wheat - For Roti/Bhakhri: 6 to 10
Wheat - For Laddu: 15
Wheat - Fada: 15
Wheat - Average Coarse: 8
Wheat - Coarse for Shira: 10
Millet (Bajri) - For Rotla: 7
Juvar - For Rotla: 6
Corn (Incl both time) - For Rotla: 3.5
Chana Dal - Fine: 10
Rice/Chana dal etc. mix - For Handva: 15
Udad dal - Fine: 5.5
Dhana - For Masala: 4
