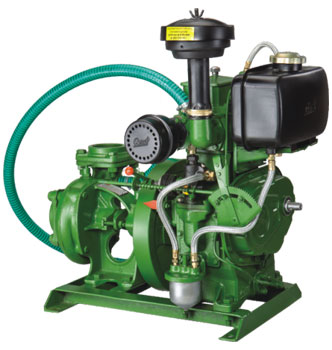

##### 3.5 HP Water Cooled Quick Start (Maruty 3.5W)
#### Specifications
Llight weight, Easy portability, Optimal fuel efficiency, Low maintenance
cost, Electric start available
#### Application
Pumpsets, Aquaculture, Firepumps, High pressure washers
#### Technical Data
No.| Item| Technical Data
---|---|---
1| Method of Cooling| Water
2| No. of Cylinder| 1
3| Rated Power - B. H. P. / kW| 3.5 / 2.6
4| Bore (mm)| 80.0
5| Stroke (mm)| 62.0
6| Rated R. P. M.| 2050
7| Swept Volume (CC)| 311
8| Compression Ratio| 17.5:1
9| Bearing Type| TRB
10| Method of Starting| Cold Starting with the help of Starting Handle
11| Engine Rotation| Standard Rotation Clockwise facing Flywheel
12| Governor Type / Class| Centrifugal / B1 Class
13| Fuel Oil| High Speed Diesel (Sp. Gr. 0.82 / 0. 84)
14| Fuel Tank Capacity| 4.0 Lts.
15| Fuel Injection Timing by Spill Cut Off Method| 28° BTDC
16| Fuel Injection Equipment| MICO make Nozzle Holder 9 430 032 294
| | Bosch Pump F 002 F 30 001
| | Injection Release Pressure 190 / 210 kg / cm2
17| Sp. Fuel Consumption gms / bhp - hr| 199
18| Sp. Fuel Consumption gms / Kwhr| 270
19| Fuel Filter Type / Capacity (Lts.)| Paper Type (Replaceable) / 0.2
20| Bumping Clearance (mm)| 1.00 - 1.10
21| Valve Tappet Clearance Inlet (mm)| 0.20
22| Valve Tappet Clearance Exhaust (mm)| 0.25
23| Air Clearaner| Oil Bath Washable Type
24| Silencer| Muffler Type
25| Lubrication System| Plunger Pump
26| Lub. Oil Sump Capacity (Lts.)| 1.000
27| Lub. Oil Strainer| Perforated Tin Sheet Washable Type
28| Lub. Oil Grade| Temp 5° C &; Below - SAE 10
| | Temp 5° C to 34° C - SAE 30
| | Temp 34° C &; Above - SAE 40
29| Crank Shaft Height (mm)| 140
30| Foundation Bolt Spacing (mm)| 225 x 104
31| Engine Net Weight (kg)| 54
32| Engine Gross Weight (kg)| 70
33| Overall Dimensions (L x W x H)| 313 x 400 x 570
34| Overall Packing Dimensions (L x W x H) (mm)| 520 x 520 x 635
| |
1| Pump Size (mm)| 80 x 65
2| Head Range (mts.)| 9.6 to 13.2
3| Duty Point|
| Head (mts.)| 12.0
| Discharge (lps)| 9.0
4| Efficiency (%)| 66.0
5| Pump Set Net Weight (kg)| 82.0
6| Pump Set Gross Weight (kg)| 98.0
7| Overall Packing Dimensions (L x W x H) (mm)| 711 x 483 x 711
