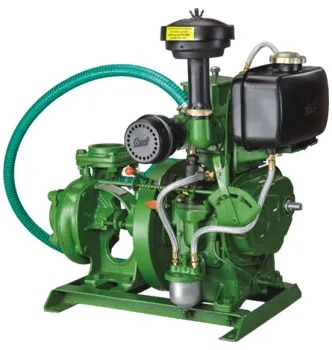

3.5 HP Water Cooled Quick Start (Maruty 3.5W)
Description
Specifications
Light weight, Easy portability, Optimal fuel efficiency, Low maintenance cost, Electric start available
Application
Pumpsets, Aquaculture, Fire-pumps, High pressure washers, Tank mounted Engine
No. Item Technical Data
1 Method of Cooling Water
2 No. of Cylinder 1
3 Rated Power - B. H. P. / kW 3.5 / 2.6
4 Bore (mm) 80.0
5 Stroke (mm) 62.0
6 Rated R. P. M. 2050
7 Swept Volume (CC) 311
8 Compression Ratio 17.5:1
9 Bearing Type TRB
10 Method of Starting Cold Starting with the help of Starting Handle
11 Engine Rotation Standard Rotation Clockwise facing Flywheel
12 Governor Type / Class Centrifugal / B1 Class
13 Fuel Oil High Speed Diesel (Sp. Gr. 0.82 / 0. 84)
14 Fuel Tank Capacity 4.0 Lts.
15 Fuel Injection Timing by Spill Cut Off Method 28° BTDC
16 Fuel Injection Equipment MICO make Nozzle Holder 9 430 032 294
Bosch Pump F 002 F 30 001
Injection Release Pressure 190 / 210 kg / cm2
17 Sp. Fuel Consumption gms / bhp - hr 199
18 Sp. Fuel Consumption gms / Kwhr 270
19 Fuel Filter Type / Capacity (Lts.) Paper Type (Replaceable) / 0.2
20 Bumping Clearance (mm) 1.00 - 1.10
21 Valve Tappet Clearance Inlet (mm) 0.20
22 Valve Tappet Clearance Exhaust (mm) 0.25
23 Air Clearaner Oil Bath Washable Type
24 Silencer Muffler Type
25 Lubrication System Plunger Pump
26 Lub. Oil Sump Capacity (Lts.) 1.000
27 Lub. Oil Strainer Perforated Tin Sheet Washable Type
28 Lub. Oil Grade Temp 5° C & Below - SAE 10
Temp 5° C to 34° C - SAE 30
Temp 34° C & Above - SAE 40
29 Crank Shaft Height (mm) 140
30 Foundation Bolt Spacing (mm) 225 x 104
31 Engine Net Weight (kg) 54
32 Engine Gross Weight (kg) 70
33 Overall Dimensions (L x W x H) 313 x 400 x 570
34 Overall Packing Dimensions (L x W x H) (mm) 520 x 520 x 635
1 Pump Size (mm) 80 x 65
2 Head Range (mts.) 9.6 to 13.2
3 Duty Point
Head (mts.) 12.0
Discharge (lps) 9.0
4 Efficiency (%) 66.0
5 Pump Set Net Weight (kg) 82.0
6 Pump Set Gross Weight (kg) 98.0
7 Overall Packing Dimensions (L x W x H) (mm) 711 x 483 x 711
