Chaff Cutting Machine ( SP 30 ) Power operated, Covered M. S. Plate Wheel fitted with 3 Steel blades, Large feeding tray, Pressing drum, Complete ball bearings, Slide rail for Motor & Grinder. Machine Pulley, Grinder & Regrinding attachment. Having Downward & High level blower. R.P.M. MAX : 600 H. P. Required : Minimum 7.5 H. P. & Maximum 10 H. P. Minimum Capacity : 1500 KG per Hour Changes given below can be made on customer’s request. 1) 4 Bladed machine 2) Only downward blower arrangement 3) For Rice Straw Cutting 4) Designed especially for Gaushalas and cows 5) Superb quality 6) Excellent performance

PENDING

PENDING

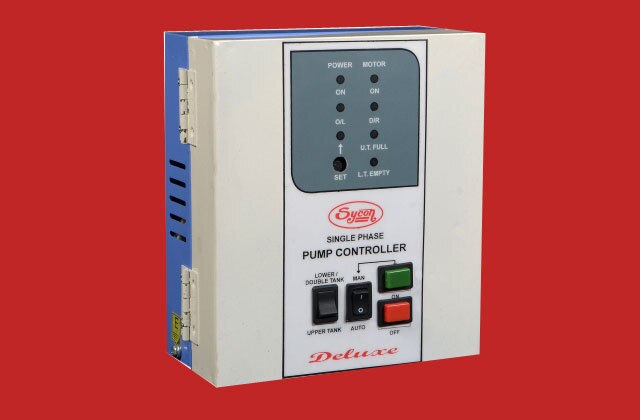

Features : Trusted Overload & Dry-run Protection Tank Controlling For Both Tank Useful For 2 Hp Bore-well Pump & Open-well Pump Make :Sycon We do Provide engineers for the installation of the same, so if you're looking for something, feel free to talk to our Sales Team

PENDING

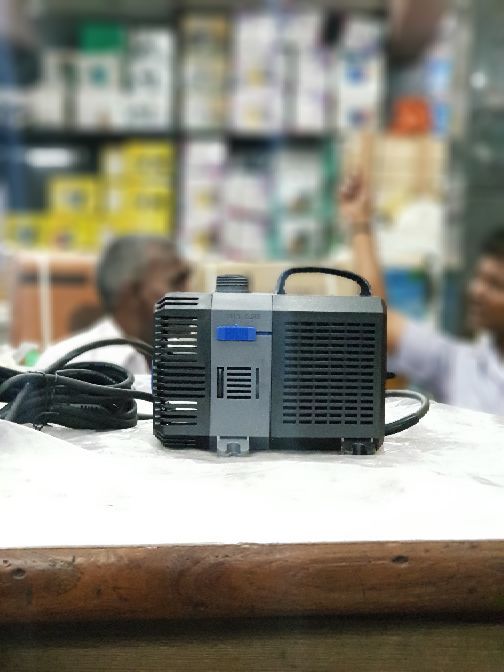

Submersible Compact Fountain Pumps

PENDING

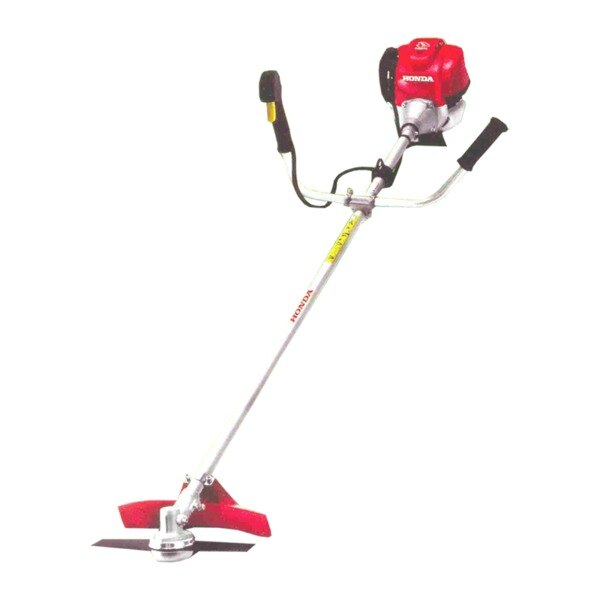

UMK435T U2NT Great at tackling those jobs which a mower can't, a Honda Brush Cutter allows you to work through a full 360 degrees & are ideally suited to agriculture, horticulture, lawn/garden maintenance & landscaping sectors. 4-stroke 2 Teeth Blade Cutter Semi-dry Type Over head Cam Single Cylinder

PENDING

Features Compact and aesthetically built Conforms to all leading standards Simple design, fewer parts, easy access to coupling bolts, output terminals Simple to install and maintain Popular range of flange adaptors & flexi disc coupling Wound with 2nd/3rd pitch in stator to eliminate harmonics Sophisticated & reliable AVR Phase Three/single Frequency, Hz 50 Voltage, V 415/240 Power factor, lag 0.8 Ambient 40°C Altitude 1000 mtrs Speed, rpm 1500 Mounting Horizontal foot mounted Duty Continuous Direction of rotation Clockwise from DE Automatic voltage regulator M/c mounted Voltage regulation +/-1% with 4% prime mover speed variation Standards IS 4722 -1992, IEC 34 Class of insulation H Temperature rise H Enclosure IP 20 Cooling IC 01 Wave form distortion (thd) Less than 3% Overload capacity 10% overload for 1 hour. once in 12 hours. Unbalance permitted 25% with none of the phase currents exceeding the rated current. Temperature rise limits for corresponding class of insulation may exceed 10°C under such conditions. Voltage regulation under above conditions will not apply No. of bearings Single/double Lubrication type Grease lubricated

PENDING

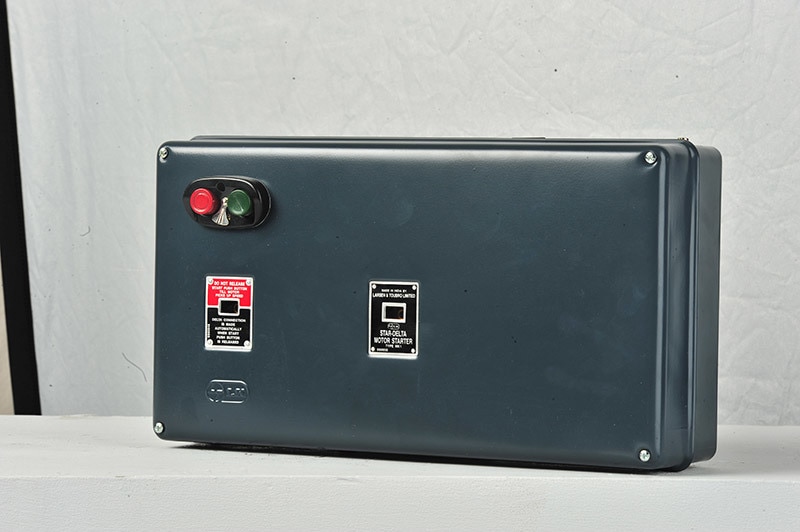

Semi Automatic Star Delta (SASD) is the method of starting 3-phase pump-sets. During the starting of pump-sets, the changeover from star winding to delta winding is done manually. L&T’s SASD starter provides basic function of ON/OFF operation and overload protection of the pump set.

PENDING

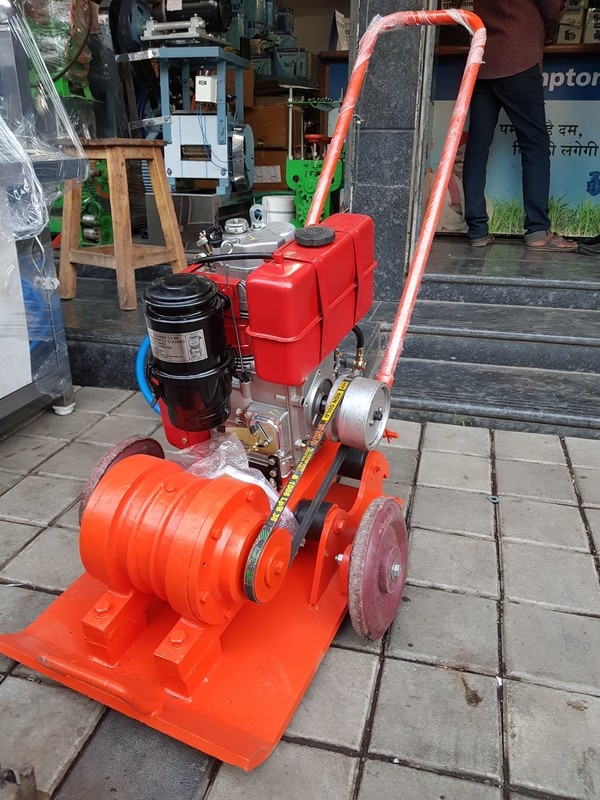

Earth Compactor Backed with years of experience in this industry, our company is known as the topmost manufacturer and supplier of excellent quality Earth Compactor. Our extensive range also includes Motorized Compactor, Plate Compactor and Reversible Compactor, available for clients in different specifications in order to meet their particular requirements. These are widely used in construction industry for compacting different types of soil, broken rocks and many other materials. Features: These are highly renowned for their excellent compaction capacity These compactors demand less maintenance Best known for their long service life

PENDING

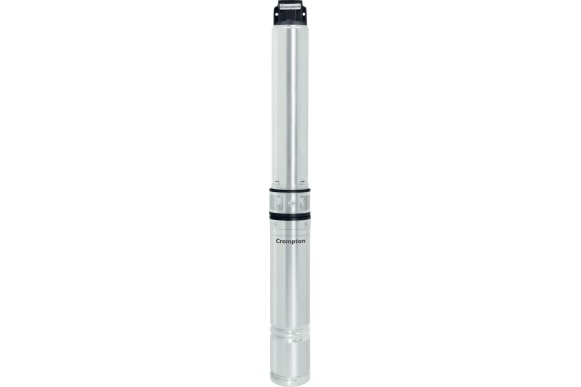

Product Details Motor • Energy efficient • Dynamically balanced & Epoxy coated rotor • Totally enclosed, water filled / oil filled squirrel cage induction motor • Cap Start & Run (PSC) for AC supply • Stainless steel stator body • PVC insulated high quality winding wire • Specially designed thrust pad Pump • Designed for optimum efficiency • Modular construction • NRV fitted in discharge outlet to prevent backflow General • Better design - Better Efficiency - Low power consumption. • Light weight - Ease in installation • Silent running• Reliable in operation Applications • Irrigation and Drip Irrigation • Sprinkler, Gardening, Nursery and Bungalows Benefits • Increased motor life • Increased safety • Ease in handling • Ease in monitoring

PENDING

Withstand wide voltage fluctuations from 180 to 240V and from 120V to 220 V for DC 5M Suction lift up to 7.5 m Models are with IP-44 Protection 'B' Class insulation All hydraulic parts are CED coated for rust free longer life Hygienic for drinking water APPLICATIONS Domestic Water Supply Water Supply for fountains, sumps and water tanks Gardening and Small Irrigation Specifications Capacity 6660 to 900 lph Head 8 m to 25 m Power rating 0.37 kW to 0.55 kW (0.5 HP and 0.75 HP) Voltage range : 180-240V

PENDING

A jaw coupling is a type of general purpose power transmission coupling that also can be used in motion control (servo) applications. It is designed to transmit torque (by connecting two shafts) while damping system vibrations and accommodating misalignment, which protects other components from damage. Jaw couplings are composed of three parts: two metallic hubs and an elastomer insert called an element, but commonly referred to as a "spider". The three parts press fit together with a jaw from each hub fitted alternately with the lobes of the spider. Jaw coupling torque is transmitted through the elastomer lobes in compression.

PENDING

Technical Specification No. of Cylinders - 1 Bore X Stroke (mm) 102 X 116 Cubic Capacity (Ltr) 0.948 Compression Ratio - 17.5 : 1 Rated Output kW(hp) 7.4 (10) Rated Speed rpm 1500 Torque at Full Load (Crankshaft Drive) kN-m(kg-m) 0.048 (4.775) Crank Shaft Center Height (mm) 203 Specific Fuel Consumption (SFC) (gm/hp-hr) 195 + 5% Lub Oil Consumption - 0.8% of SFC max. Lub Oil Sump Capacity (Ltr) 3.7 at higher level on dipstick Fuel Tank Capacity (Ltr) 11.5 Physical dimensions of bare engine (Length X Width X Height) (mm) 531 X 546 X 878 Engine Weight (dry) (kg) 194 Rotation while looking at the flywheel - Clockwise Power Take-off - Flywheel End Starting - Hand Start Governing - Class “A2/B1” Type of Fuel Injection - Direct Injection Overloading Capacity of Engine - 10% of Rated Output

PENDING

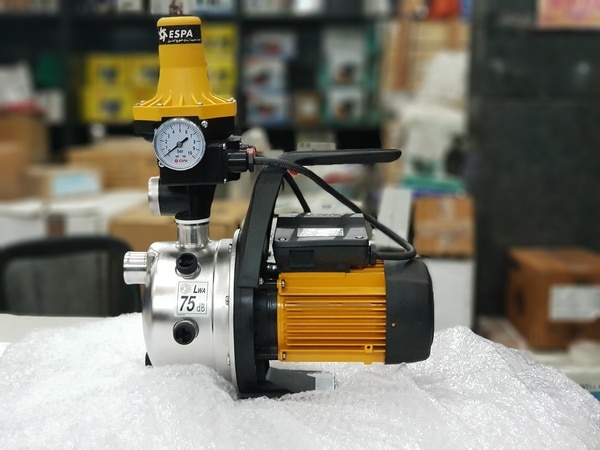

Series features Delta 1755: Equipment Check valve: No Draining plug: Yes Fittings: Not included Handle: Included Support base: Included Electrical characteristics Electrical isolation: F Class Motor speed operation: Constantly speed Motor type: Asynchronous Protection rating: IP44 Reset: Automatic Service factor: S1 Service type: Continuous Manufacturing characteristics Discharge connection type: Nut Discharge diameter: 1" G Impeller type: Closed Motor cooling: Fan Stages: Multi stage centrifugal pump Suction connection type: Nut Suction diameter: 1" G Suction type: Selfprimming Tightness by: Mechanical Seal Materials Diffuser: PPO + 30% GF Discharge body: Stainless steel AISI 304 Gaskets: NBR Impeller/s: Stainless steel AISI 304 Mechanical seal: Graphite-Steatite Mechanical seal bracket: Technopolymer Motor casing: Aluminium Pump shaft: Stainless Steel AISI 420 Suction body: Stainless steel AISI 304 Support base material: Polyamide 6.6 + 30% GF Usage limits Liquid temperature (ºC): Min: 4 - Max: 35 Maximum no. of motor start-ups (start-ups/minute): 0,50 Maximum suction (m): 9

PENDING

PENDING

Specification: » Average: 4 - 5 kg / hrs » Motor: 1.25 H.P. (Unit of two machine) » Mixer Cum Kanding: 1 HP (Size - 2' X 2.5' X 2.5') » Sheeter: 0.25 H.P. (Size - 6' X 2' X 3.5')

PENDING

• CED coated pump components in Pacific Series • Stainless Steel insert provided in casing & adaptor • Brass Impeller • Self Priming upto 8.0 meter at mean sea level • High quality and long life mechanical seal • Fitted with Thermal Overload Protector • IP 55 protection • Class F insulation • Aluminium pressure die cast motor body Applications • Bungalows, flats, laundries, clubs • Gardening, lawn sprinklers • Booster applications e-Catalogue Technical Specifications: Cat Ref. Power (kW) Power (HP) Inlet Size (mm) Outlet Size (mm) Voltage Band (V) Phase Speed (RPM) Head Range (m) Discharge Range (LPH) MINI PACIFIC I 0.75 1 25 25 180-240 Single Phase 3000 6-55 4280-700 MINI PACIFIC II 0.37 0.5 25 25 180-240 Single Phase 3000 6-36 2760-600 MINI MASTERPLUS I 0.75 1 25 25 180-240 Single Phase 3000 6-50 4250-900 MINI MASTERPLUS II 0.37 0.5 25 25 180-240 Single Phase 3000 6-36 2700-500
